Plywood Joints: Butt, Dado, Rabbet, and Dowel Joints That Hold
Plywood joints hold a cabinet, a box, or a panel together, and the right joint depends on the edge, the load, and the finish that the build demands. A butt joint suits a light box, a dado joint carries a shelf load, a rabbet gives a clean corner, and a dowel joint aligns two faces without a visible edge. This guide covers the common plywood joints, when each one earns its place, and how to cut and glue them so the panel line stays square and the seam does not open in service.
Why Plywood Changes the Joint
Plywood behaves differently from solid lumber at the joint, because the panel has layers rather than a single grain. A screw driven into a plywood edge grips a solid veneer layer and holds under a pull, while the same screw in a softwood block may split along the grain. That grip is the plywood advantage, and the joint selection should use it rather than fight it.
The crosswise layers also mean the edge cuts clean with a sharp blade and takes a glue line well, so a joint that relies on a flat, square edge holds. The panel keeps its dimensions through the seasons, so a joint that is glued and clamped flat stays flat rather than opening at the seam.
The Edge as a Surface
A plywood edge presents a layered face that a joint can use. A dado cuts across the layers, a rabbet seats a panel, and a dowel lands in a clean hole. The edge is the strongest surface on the panel for a joint, because the glue bonds to solid veneer rather than to a crushed core.
The same edge also sets the accuracy of the joint. A panel cut square on a table saw seats true in a dado, while a rough edge leaves a gap that the glue cannot close. True the edge before the joint, because the joint only holds what the edge allows it to hold.
Grain Direction and the Seam
The face grain runs the length of the sheet, and the joint should sit across that grain rather than along it. A joint placed along the grain opens under a seasonal pull, while one placed across the grain is held by the fibers and stays closed. Plan the panel layout so the seams fall across the grain and the joint line disappears into the design.
The Common Plywood Joints
The four joints cover most of the work in a plywood cabinet or box. Choose by the load and the finish before the cut, because the joint is hardest to change once the panel is assembled.
| Joint | Where it fits | Strength |
|---|---|---|
| Butt joint | Light boxes, backs | Lowest |
| Dado joint | Shelves, cabinet sides | High |
| Rabbet joint | Corners, panel seats | Medium-high |
| Dowel joint | Face frames, doors | High, hidden |
Read the table as a decision list. A butt joint carries a light load, while a dado joint carries the shelf weight across the panel, so the joint that fits the load is the one the build keeps.
The Butt Joint
A butt joint places two edges face to face and glues them together. It is the fastest joint on the bench and works for a light box or a back panel, but the joint offers little resistance to a pull apart because the glue line is end grain to end grain.
Strengthen a butt joint with screws or dowels when the panel carries load, and clamp it flat while the glue sets. Keep the glue line thin, because a thick joint line on end grain holds weaker than a thin one, and the joint then fails under the load it was meant to carry.
The Dado Joint
A dado joint cuts a groove across the panel, and the mating edge seats into that groove. The joint carries a shelf load because the panel sits on the groove rather than on a glue line, and the seam closes tight under the load.
Cut the dado with a straightedge and a router, or with a dado stack on a table saw, and test the fit on an offcut before the real panel. The groove should hold the mating panel firmly without crushing the layers, and a light tap with a mallet seats the joint without closing the panel line.
The Rabbet Joint
A rabbet joint cuts a step into the edge of one panel, and the mating panel seats into that step. The joint gives a clean corner where the panel sits flush, and it hides the end grain behind the rabbet rather than exposing it on the face.
Cut the rabbet with a router, a dado stack, or a rabbet plane, and set the depth so the mating panel sits flush with the corner. The joint suits a box lid, a back panel, or a carcass corner where the seam wants to read as a line rather than a step.
The Dowel Joint
A dowel joint drills matching holes in two panels and seats a fluted dowel in each pair. The joint aligns the faces cleanly and hides the dowel inside the panel, so the visible surface shows a seam rather than a fastener.
Use a dowel jig to align the holes, because a misaligned dowel forces the panel out of square. Glue the dowel into one panel first, then mate the second panel over it, and clamp the faces flush while the glue sets.
Cutting and Gluing the Joints
The cut quality sets the joint quality, and the glue line decides the hold. Work the two together and the joint stays square through the seasons.
Tools for the Cut
A router with a straightedge covers the dado and the rabbet, and a drill with a dowel jig covers the dowel joint. A fine-tooth blade keeps the plywood edge clean, and a sharp bit leaves the groove walls smooth rather than torn.
Set the fence or the straightedge on the waste side of the line, because the cut leaves a clean edge only on the side the blade faces. Take a light first pass and a final pass to depth, and the groove sits true without tearing the veneer.
Glue and Clamp
A thin, even glue line holds stronger than a thick one, so spread the glue across the joint face rather than squeezing it out of the seam. Clamp the joint flat and keep the pressure even along the panel line, because a clamp that bears on one spot opens the seam at the other end.
Wipe the squeeze-out while it is still wet, because a dried glue line blocks the finish and shows under a clear coat. A clean joint needs no filler when the panels seat square, and the seam then reads as an even line across the finished panel.
Let the glue cure for the full product time before the clamps come off. A joint disturbed early loses grip on the plywood face, and the panel then opens at the seam under the first load rather than holding for the life of the cabinet.
Which Joint for Which Build
The build decides the joint. A light box can use a butt joint with screws, while a shelf run wants a dado, and a cabinet face frame wants a dowel.
- Light box and back panel: butt joint with screws.
- Cabinet shelves and sides: dado joint.
- Box corners and panel seats: rabbet joint.
- Face frames and doors: dowel joint.
- Wet or exterior work: dado with waterproof glue.
Frequently Asked Questions
Short answers to the joint questions that decide a plywood build.
What is the strongest joint for plywood?
A dado joint carries the strongest load because the panel sits in the groove rather than on a glue line, and a dowel joint matches it where the faces must hide the joint. A butt joint holds the lightest load and should be reinforced with screws or dowels when the panel carries weight.
Do plywood joints need glue?
Yes. Glue bonds the veneer face far stronger than a screw alone, and the joint holds under load only when the glue line is thin, even, and clamped flat. A joint without glue loosens as the panel moves through the seasons.
Can I use a dado joint for a heavy shelf?
Yes, a dado joint is the right choice for a heavy shelf, because the panel seats in the groove and carries the load across the plywood edge. Add screws at the joint when the shelf spans a wide gap, and the load spreads into the side panel rather than into the glue line.

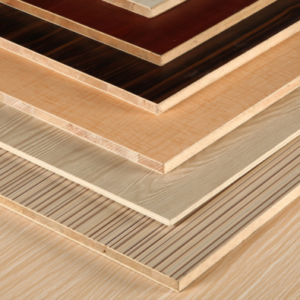

For panels that cut clean and hold a glue line through the seasons, HYY supplies Commercial Plywood and Melamine Plywood in the sizes a cabinet shop needs, so every joint lands on a flat, stable edge that the glue can bond to.
