Plywood Door Design: Panel Types, Construction, and Hardware Details
Plywood door design covers a lot of ground, from a flat slab on a cupboard to a framed door with a visible grain pattern and a routed profile. The material suits door work because it stays flat through seasonal humidity changes, which a wide solid board does not. This guide explains how to choose a panel for a door, how to build the different door types, what hardware fits a plywood edge, and which details decide whether a door stays true after a year of use.
You can build or order a plywood door that behaves like a solid one, once the panel, the frame, and the hinge line are chosen together.
Why Plywood Suits Door Panels
Door work punishes material that moves. A wide solid board cups with humidity, and the door then drags on the floor or binds at the top corner. Plywood’s crossed grain cancels most of that movement, so a wide door panel stays flat across its width. The panel also takes a screw firmly at any point, which makes the hinge mounting and the lock stile much easier to detail.
Flatness Across the Width
The panel resists the seasonal movement that shows up in solid lumber, because the grain of each layer crosses the layer below it. That is why a plywood door in a bedroom with a changing climate keeps its line, while a solid door of the same width often needs planing. A stable panel is also the reason a plywood door can carry a decorative finish without the joints opening, which saves the fill and sand work that a moving solid door needs every season.
Surface and Finish
A good face veneer takes paint, stain, or lacquer evenly, so the finished door reads as one continuous surface. A poorer face telegraphs the core through a clear coat, which is why a visible door wants a face-grade sheet rather than a utility panel. Choose the finish first, then pick the face that supports it, and the result stays consistent across every door in a run.
Types of Plywood Doors
The design falls into three families, and each one earns its place in a different situation. A flat slab is quick and clean, a framed-and-panelled door carries the load and looks substantial, and a louvered or slatted door handles airflow. The choice sets the hinge position, the thickness, and the hardware you can order.
| Door type | Best suited to | Key detail |
|---|---|---|
| Flat slab | Cabinets and utility rooms | Edge banding on the cut edges |
| Framed and panelled | Interior rooms and doors | Panel sits in a groove, not glued fixed |
| Louvered | Laundry and ventilation | Slat angle and spacing stay consistent |
| Hollow core | Light interior doors | Stile must carry the hinge screws |
| Solid core | Bedrooms and entry use | Weight needs the right hinge rating |
A framed-and-panelled door carries the panel in a groove so the panel can move without stressing the frame. Glue the frame, leave the panel floating, and the door stays square. A flat slab avoids that work entirely and takes a routed or a rounded edge if the profile matters more than the traditional look. Commercial Plywood covers the structural parts of both designs with a face that takes paint evenly.
Building a Plywood Door
Start with a parts list and a square work surface. A door that is out of square by a couple of millimetres at one corner will bind at the latch side for its whole life, so the first step is to get the frame true before the glue sets. Cut the stiles and rails, fit the panel, and clamp on a flat bench so the glue pulls the frame square rather than locking in a twist.
- Measure the opening twice and allow the clearance on all four edges
- Cut the frame members square and label each part
- Set the panel in a groove or a rebate so it can move
- Glue the frame joints and clamp on a flat surface
- Check both diagonals before the glue sets
- Let the assembly cure fully before machining the edge
- Sand the faces and seal every cut edge
- Drill the hinge cup from a template, not by eye
A panel that is glued into a fixed frame is the most common construction mistake, because the panel wants to swell and shrink while the frame stops it. Keep the panel floating in its groove and the door stays flat. A construction core also takes screws into the lock stile without splitting, which keeps the hardware solid after repeated use.
Edges, Veneers, and Hardware
The edge of a plywood door shows the layer stack, and how you finish that edge decides how the door looks. An exposed edge can be banded with a matching veneer, painted with a solid sealer, or left as a visible design feature on a workshop or a retail display. Choose the treatment before the door is cut, because banding applied after installation always shows the seam, and a seam on a visible door is the first thing a visitor notices.
Hinges and the Stile
The hinge sits in the lock stile, and the stile needs enough width to hold the screw without the core crushing. A concealed hinge cup needs a clean, square bore, which is easier to drill into plywood than into a fibre core. Check the hinge rating against the door weight, because a solid core door on an undersized hinge will sag, and a sagging door is a job to fix rather than a simple adjustment.
Locks, Latches, and Edging
A plywood edge takes a latch and a strike plate well, provided the hardware is set into a solid core rather than into a void. Bore the lock hole with a spade bit or a hole saw at full speed, and back the face with a scrap so the exit does not blow out. An edge-banded door hides the fastener line, while a visible edge can carry a metal or a wood strip that also protects the panel from knocks.
Surface Treatment

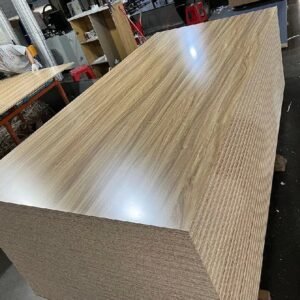

Paint, stain, and clear lacquer all work on a plywood door, and each wants a slightly different preparation. Paint hides the grain and covers a minor face defect, while stain shows the figure and needs a face-grade veneer to look deliberate. Melamine Plywood covers the case where a door needs a factory finish with no site work, which suits a cabinet door run.
Plywood Door Design FAQ
These are the short answers to the design questions that come up most often on a plywood door job.
What thickness plywood should I use for a door?
A flat cabinet door usually takes a panel in the range that keeps the door light enough for the hinges, while a full room door needs a framed construction with a core that carries the lock. Check the hinge rating against the door weight before settling on a thickness, since a heavier door changes the hardware you can use.
Is plywood good for doors?
Yes, and it is usually better than a wide solid board because the crossed grain keeps the panel flat through seasonal humidity changes. A plywood door also takes a screw at any point, which makes the hinge mounting and lock detail simpler.
How do I stop a plywood door from warping?
Build it with a panel that can move inside the frame, seal every cut edge, and finish both faces so the panel takes and releases moisture evenly. Clamp the frame on a flat surface and check the diagonals before the glue sets, because a door that starts out of square only gets worse.
Can I use plywood for an exterior door?
Use an exterior bond and seal every edge and end grain, because the edge is where an exterior door takes water first. A film-faced panel suits a service door or a utility entrance, while a stained or lacquered door needs a face-grade panel and a proper overhang to keep the water off.
How do I attach hinges to plywood?
Drill the cup or the mortise from a template so the hinge sits square to the edge, and use screws that bite into the core rather than the veneer alone. Set the screws to the depth of the hinge leaf and check the door swing before driving them home, because a slightly out-of-line cup pulls the door out of alignment permanently.
A plywood door earns its place by staying flat, taking a finish, and holding a hinge without splitting. Pick the panel, the construction, and the hardware as one decision, and the door will behave that way for years. HYY supplies door panels with clear face and core details, so the material you order matches the hinge line and the finish the design needs.
